SC-2048 - (VFX, VFX-SD, SD-1)

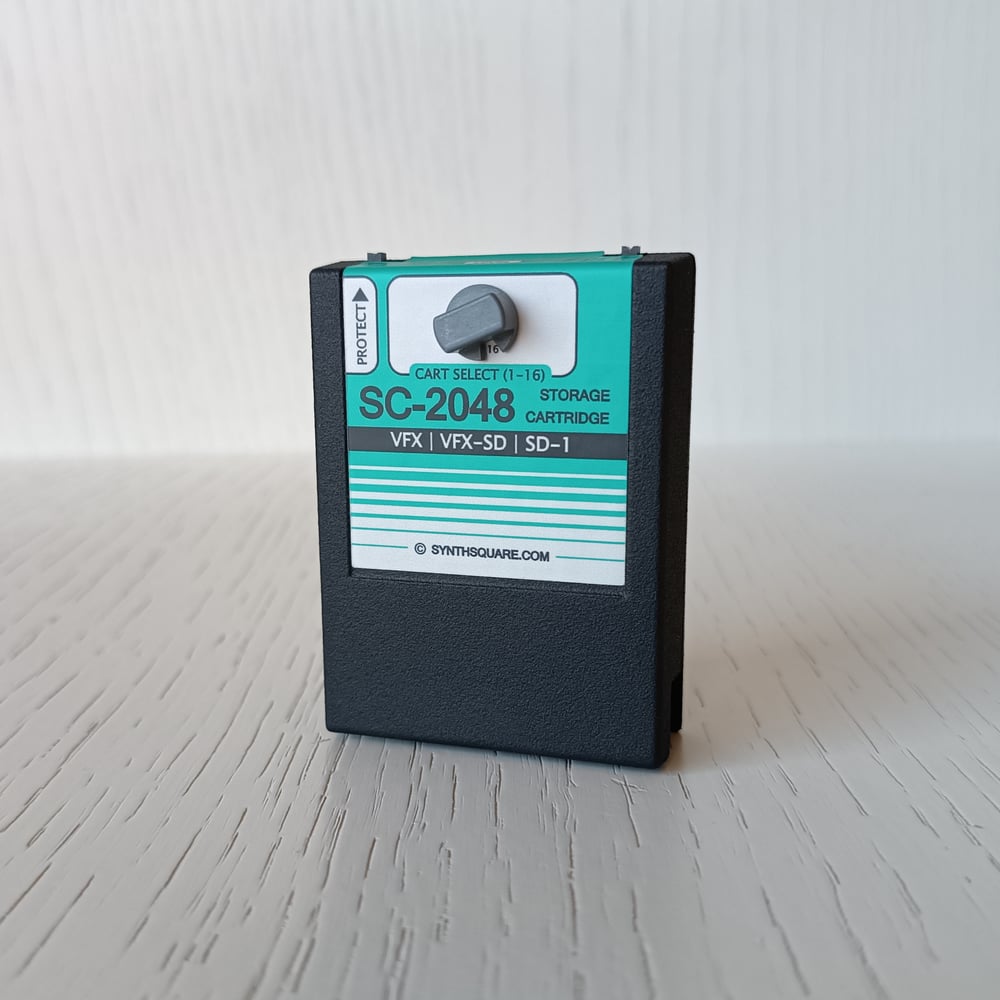

SC-2048 is a newly manufactured Rewritable Cartridge for the Ensoniq VFX, VFX-SD and SD-1.

FEATURES

• 64 cartridges in 1 (each cartridge contains 10 banks, each bank contains 6 patches) for a total of 3840 patches

• Rewritable: patches can be overwritten

• No internal battery

• Memory PROTECT switch: prevents writing operations and keeps your data safe

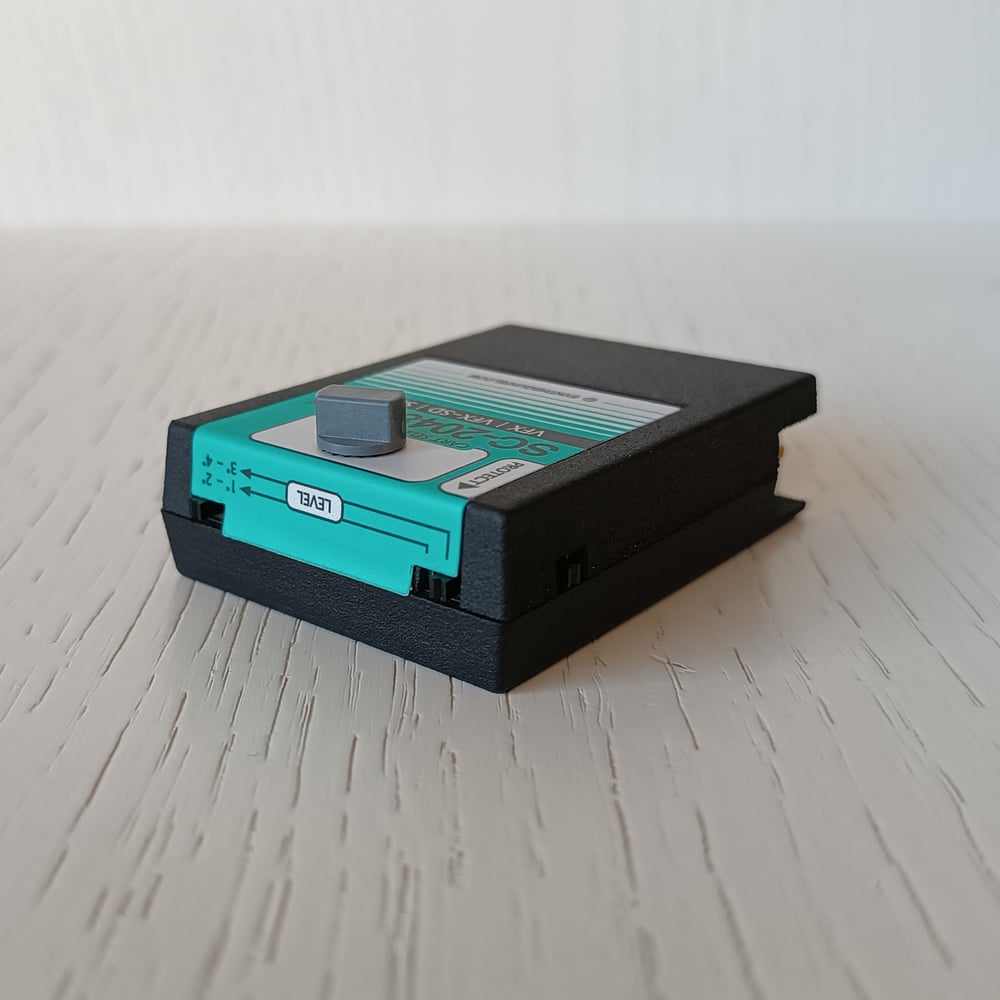

• User-friendly interface: patches are accessed by a 16-position CARTRIDGE SELECTOR rotary switch and two LEVEL switches

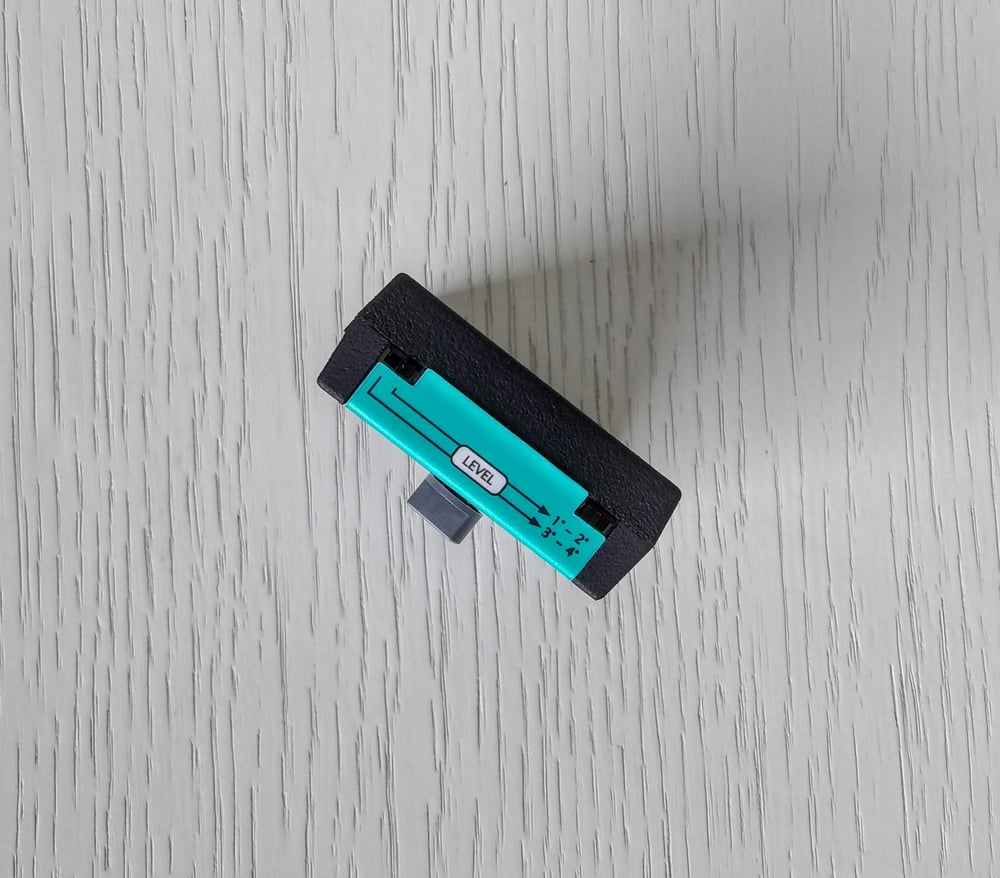

  LEVEL switches allow the selection of 1 LEVEL out of 4 (1°, 2°, 3°, 4°): just think of having 16 cartridges for each LEVEL

  Selected LEVEL and CARTRIDGE are immediately displayed on the label graphics

• Banks can be switched on the fly: no need to remove and reinsert the cartridge

• Industrial manufactured plastic case:

  - No low-cost/low-quality 3D printed case

  - Faithfully replicates the original Ensoniq design

  - Fits perfectly into the cartridge slot, same dimensions as the original

  - Slightly increased in height for better usability of the rotary switch

  - Fully covers contact pins

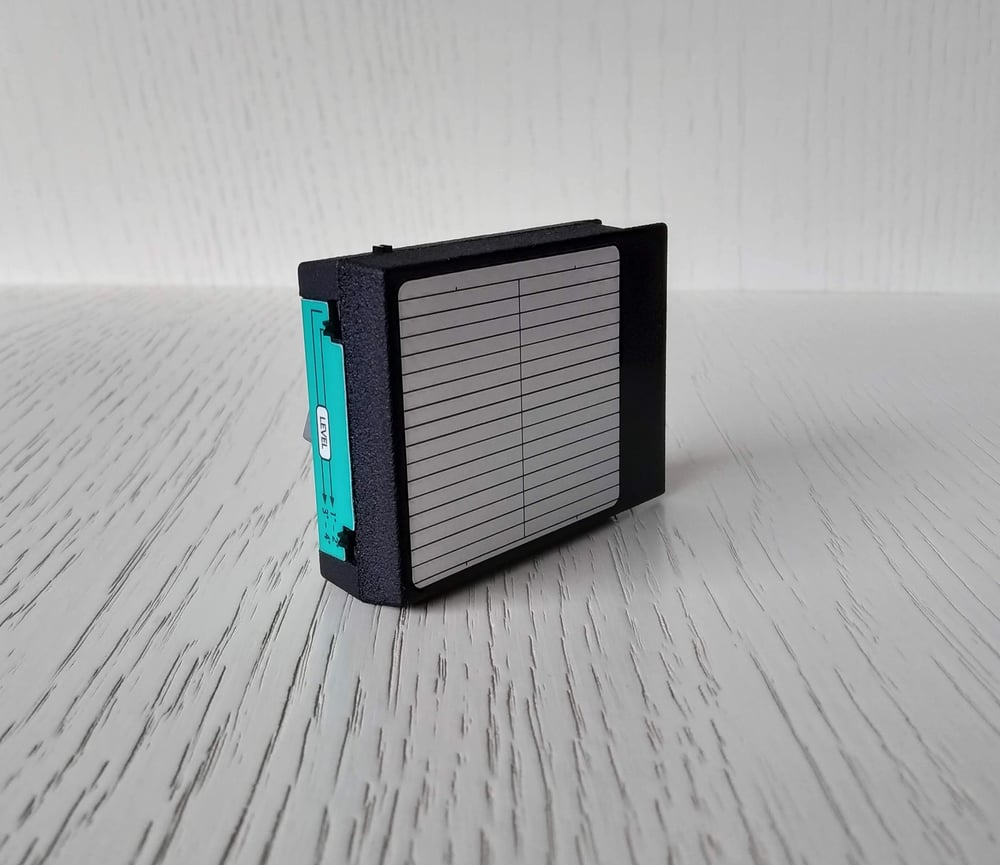

• Rear label is conceived for drawing a table of 4 columns (for LEVELs) and 16 rows (for CARTRIDGEs), which allows for writing down all the bank names contained in the memory card

• Cartridge is preloaded with 960 patches into LEVEL 4°; the remaining 3 LEVELs (1°, 2°, 3°) are preloaded with VPC-100 in each location
