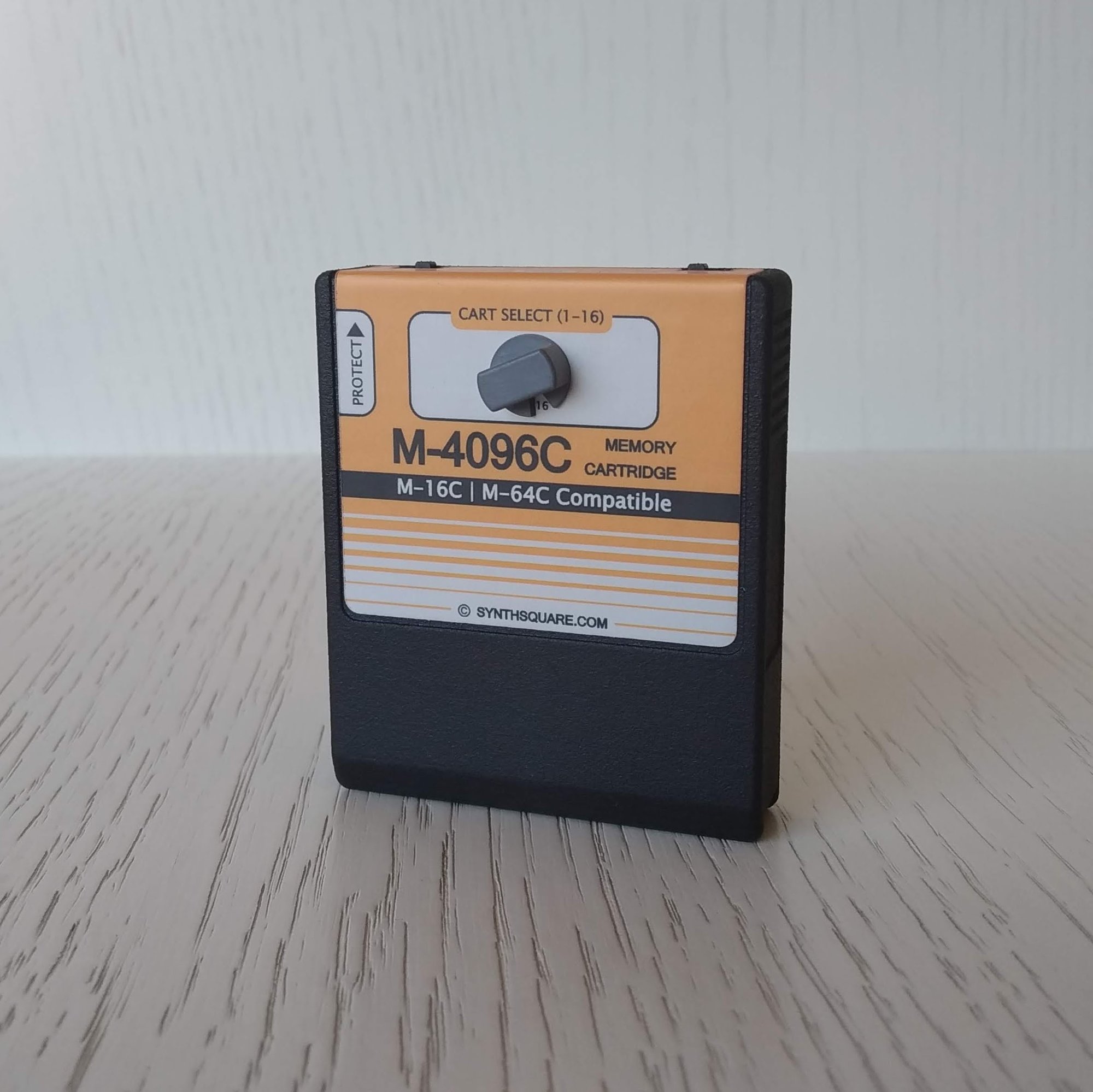

M-4096C - (M-16C, M-64C Compatible)
M-4096C
is a newly manufactured Memory Cartridge that can be used in place of
Roland M-16C and M-64C cartridges.
It
is compatible with the following Roland devices:
Alpha
Juno 2, DDR-30, GR-700, GR-77B, JX-8P*, JX-10*, MKS-20, MKS-30,
MKS-70*, MKS-80, TR-707, TR-727, TR-909.
*
Not tested on the Vecoven firmware
A
single cartridge can store data of different devices (from the list
above).
FEATURES
64 times the size of the factory cartridge (4096K, equivalent to 64 M-64C cartridges)
Rewritable
No internal battery
Memory PROTECT switch: prevents writing operations and keeps your data safe
Non-standard PCB thickness (> 2 mm), same as the original PCB, fits perfectly the cartridge connector of your Roland device

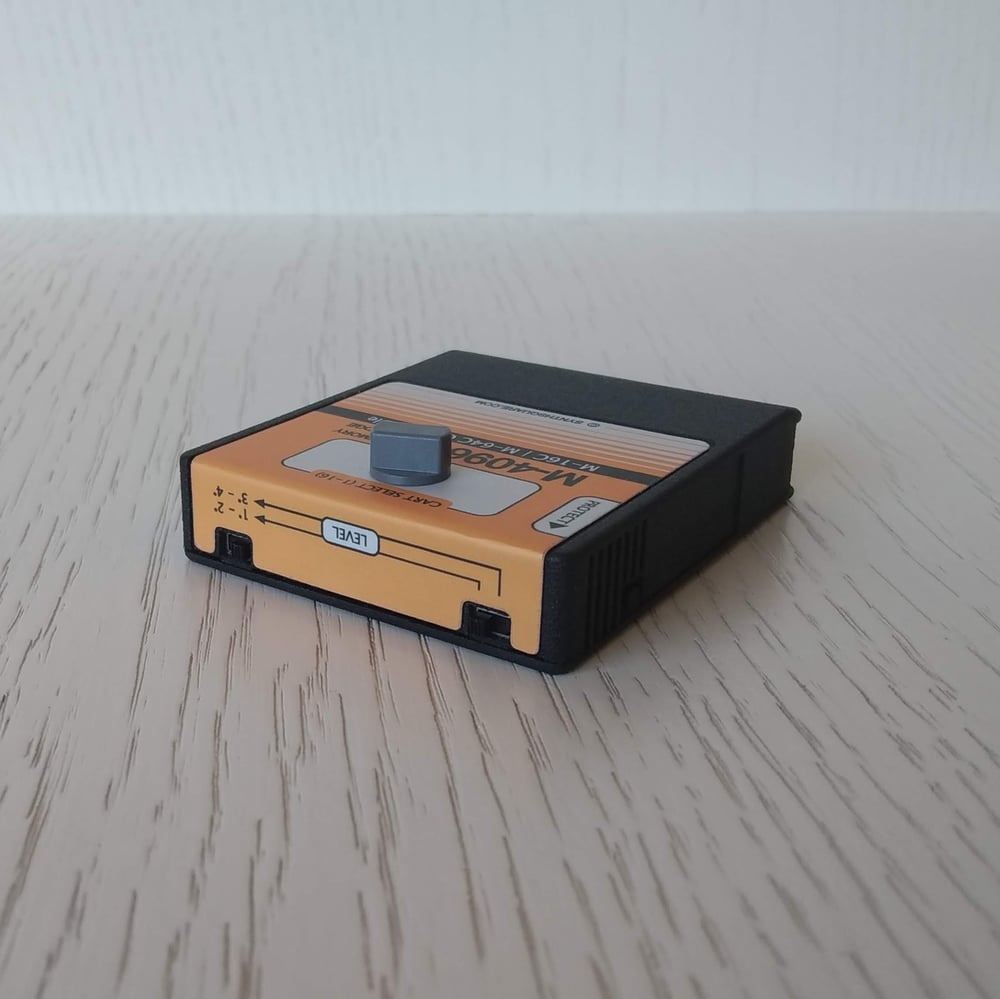

User-friendly interface: banks are accessed by a 16-position CARTRIDGE SELECTOR rotary switch and two LEVEL switches

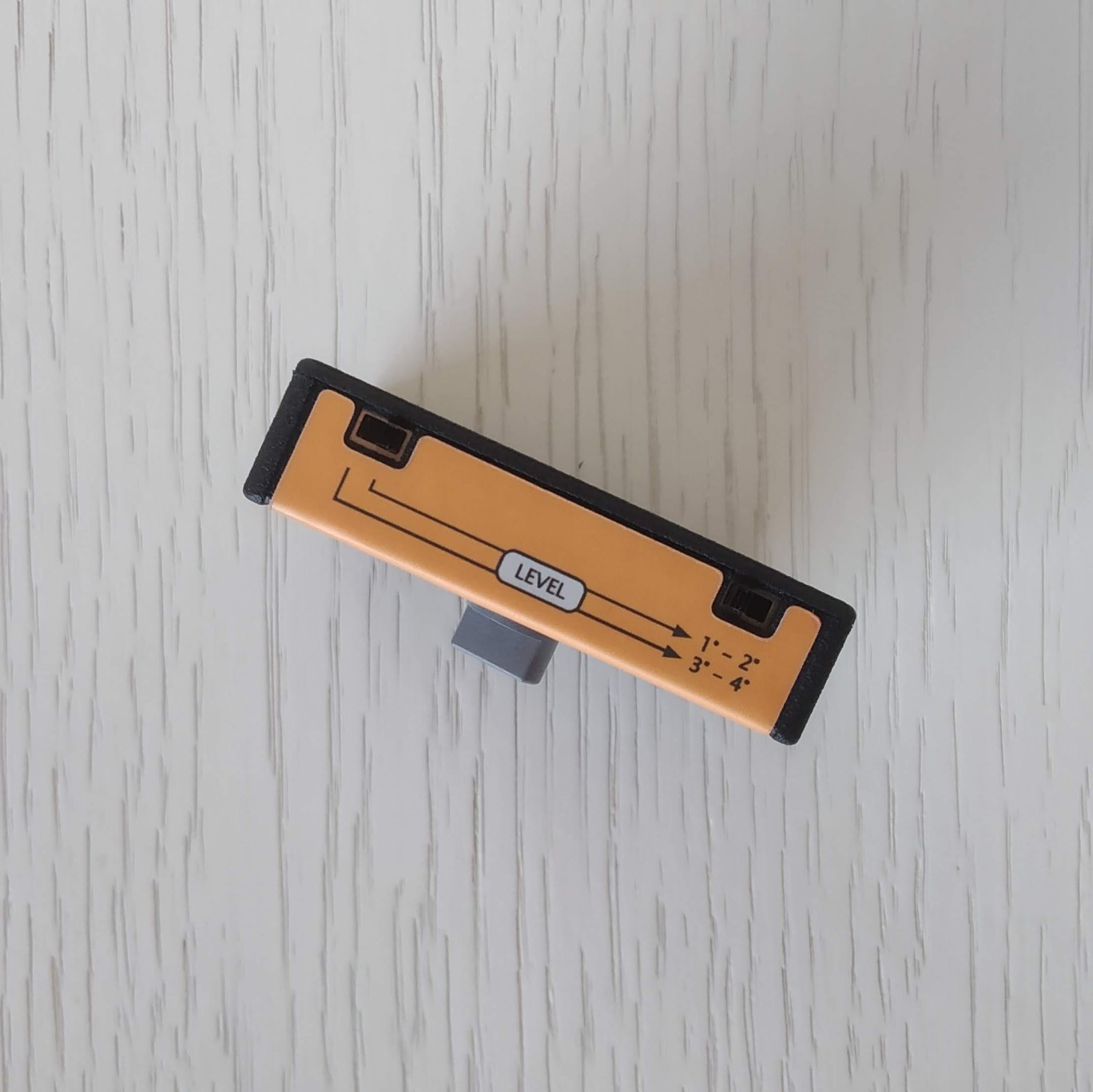

The two LEVEL switches allow the selection of 1 LEVEL out of 4 (1°, 2°, 3°, 4°): just think of having 16 cartridges for each LEVEL
Selected LEVEL and CARTRIDGE are displayed on the label graphics
Banks can be switched on the fly: no need to remove and reinsert the cartridge
Industrial manufactured plastic case:
- No low-cost/low-quality 3D printed case
- Faithfully replicates the design of the original Roland M-64C plastic case (same shape, same dimensions)
- Fully covers contact pins

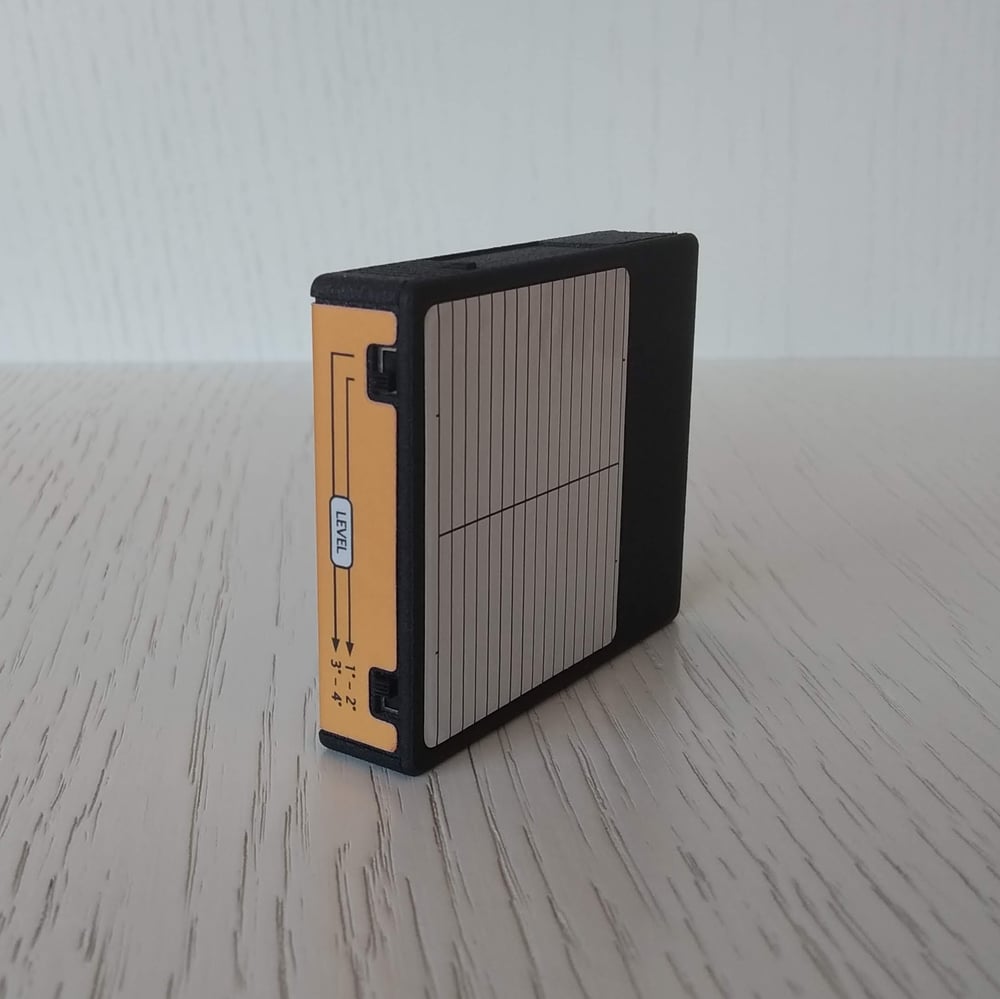

Rear label is conceived for drawing a table of 4 columns (for LEVELs) and 16 rows (for CARTRIDGEs), which allows for writing down all the bank names contained in the cartridge
